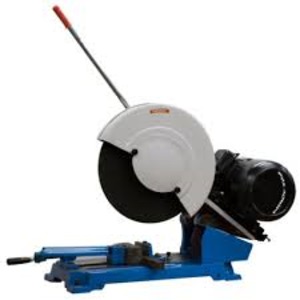

16" Cut-Off Saw

Specifications:

Power: 5HP/220Volt/Single Phase

Speed: 2850RPM

Cutting Wheel size: 16" (406.4mm)

Features:

Heavy Duty Cast Iron can induct vibration for sturdy operation.

Quick releaser vise for holding workpiece, which allows cuts up to a 45 deg angle.

Special designed handle for easy movement.

All specifications and design characteristics shown are subject to change without prior notice.

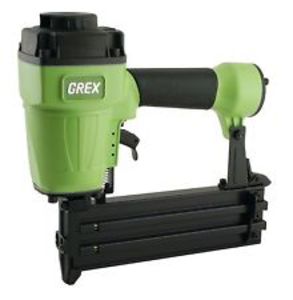

1832 Nailer 18GA

Specifications:

Magazine capacity: 100 Nails

Operating pressure: 70-100PSI

Hose fitting: 1/4"NPT

Fasteners:Brad head finish nails: 18Gauge,Fastener length range:10-32mm

Features:

Light weight die cast body.  Durable driver and piston o-ring assembly. Compact size. Convenient side loading. Quick release nose cover for easy to jams without disassembly.

All Specifications and design characteristics shown are subject to change without any prior notice.

RF-115 4 1/2

Specifications:

Power: 1/3HP / 220Volt/Single Phase

*Cutting capacity: Round(114.3mm (4 1/2"),  Rectangular(100x150mm (4"x6")

Blade speed: 65, 95, 165FPM

Motor speed: 1420RPM

Blade size: 12.7x0.64x1638mm

Blade wheels: High strength flanged cast iron (7 3/8" 187mm)

 * Use Horizontal or vertical.

All Specifications and Design characteristics shown are subject to change without prior notice.

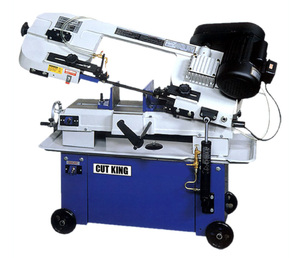

RF-712 7" Metal Bandsaw

Specifications:

Power: 3/4HP / 220Volt/Single Phase

Cutting capacity:

 Round: 90 Degrees: 177.8mm

              45 Degrees: 127mm

Rectangular: 90 Degrees: 177.8mm x 304.8mm (7"x12")

                      45 Degrees: 120mm x 115mm (4 3/4" X 4 1/2")

Blade speeds: 70, 105, 145, 190FPM

Motor speed: 1420RPM

Blade size: 19.05 x 0.8x2362mm (carbon blade)

Horizontal/vertical

All specifications and design characteristics shown are subject to change without prior notice.
